DOZOPAK 1000 UP 3-25L V
PURPOSE OF THE MACHINE

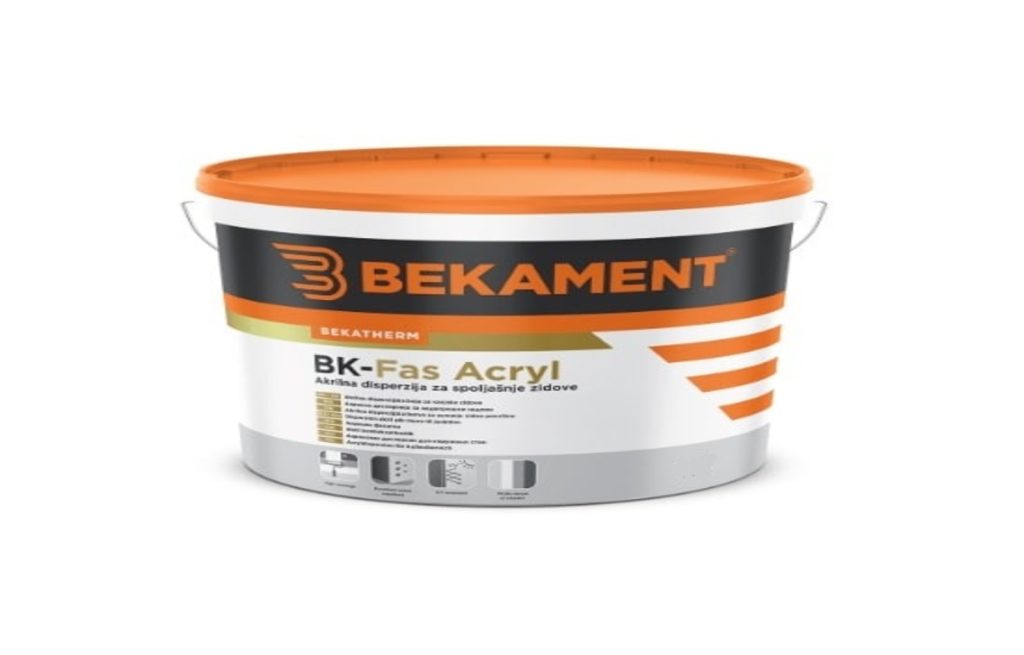

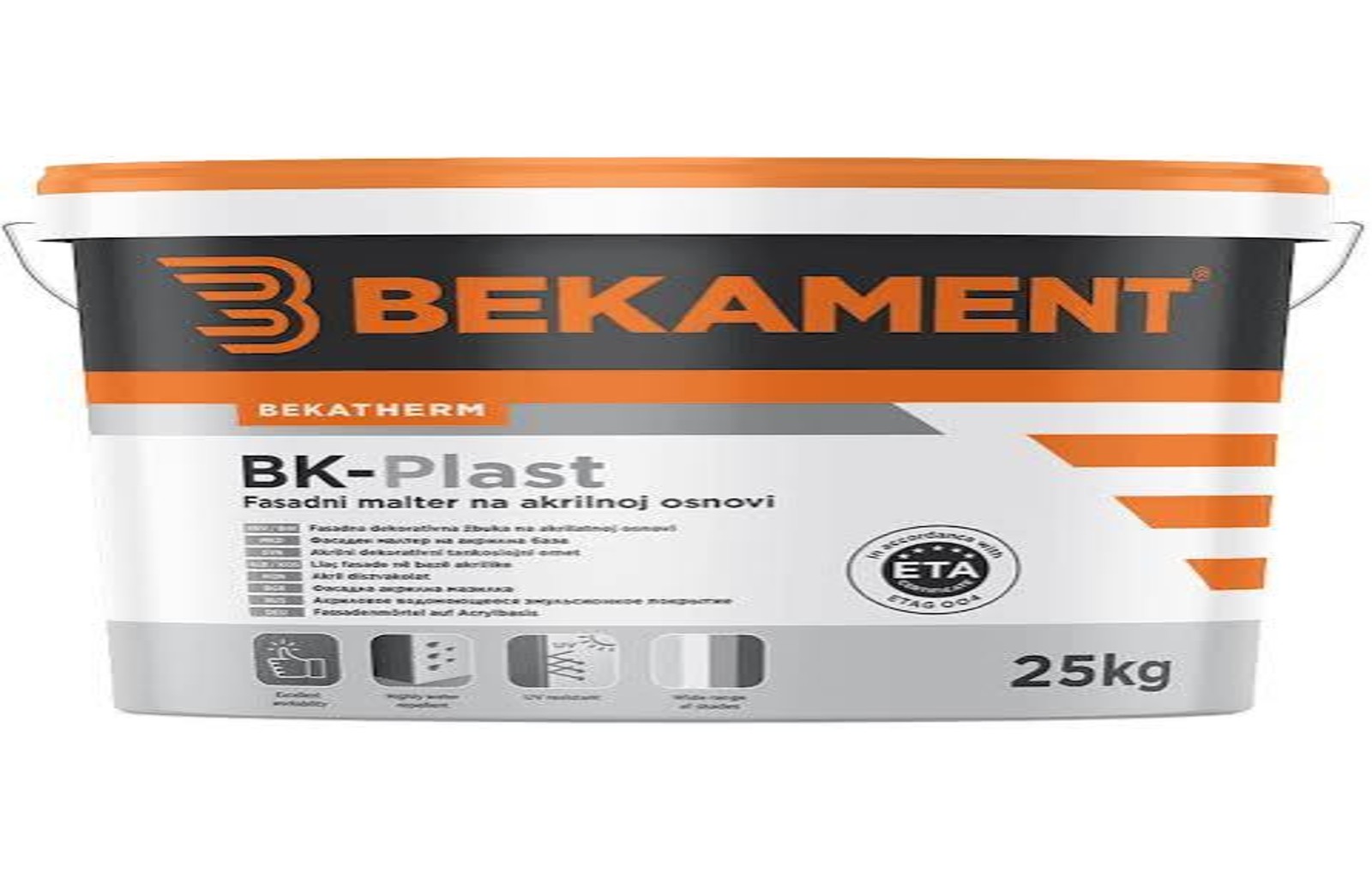

DOZOPAK 1000 UP 3-25L V is intended for filling containers from 3 to 25 kilograms for creamy materials for facades, but it can be used for filling all types of liquid and pasty substances used in the dairy, chemical and other industries.The machine consists of the following assemblies, which in the technical and technological sense represent a unique unit: manual loading of containers, two-part conveyor for containers, dosing module with force measurement, lowering and tamping of snap-on lids, designed as two independent assemblies, one up to 8 liters, the other up to 25 liters, and bringing the filled containers to the receiving table
TECHNICAL DESCRIPTION

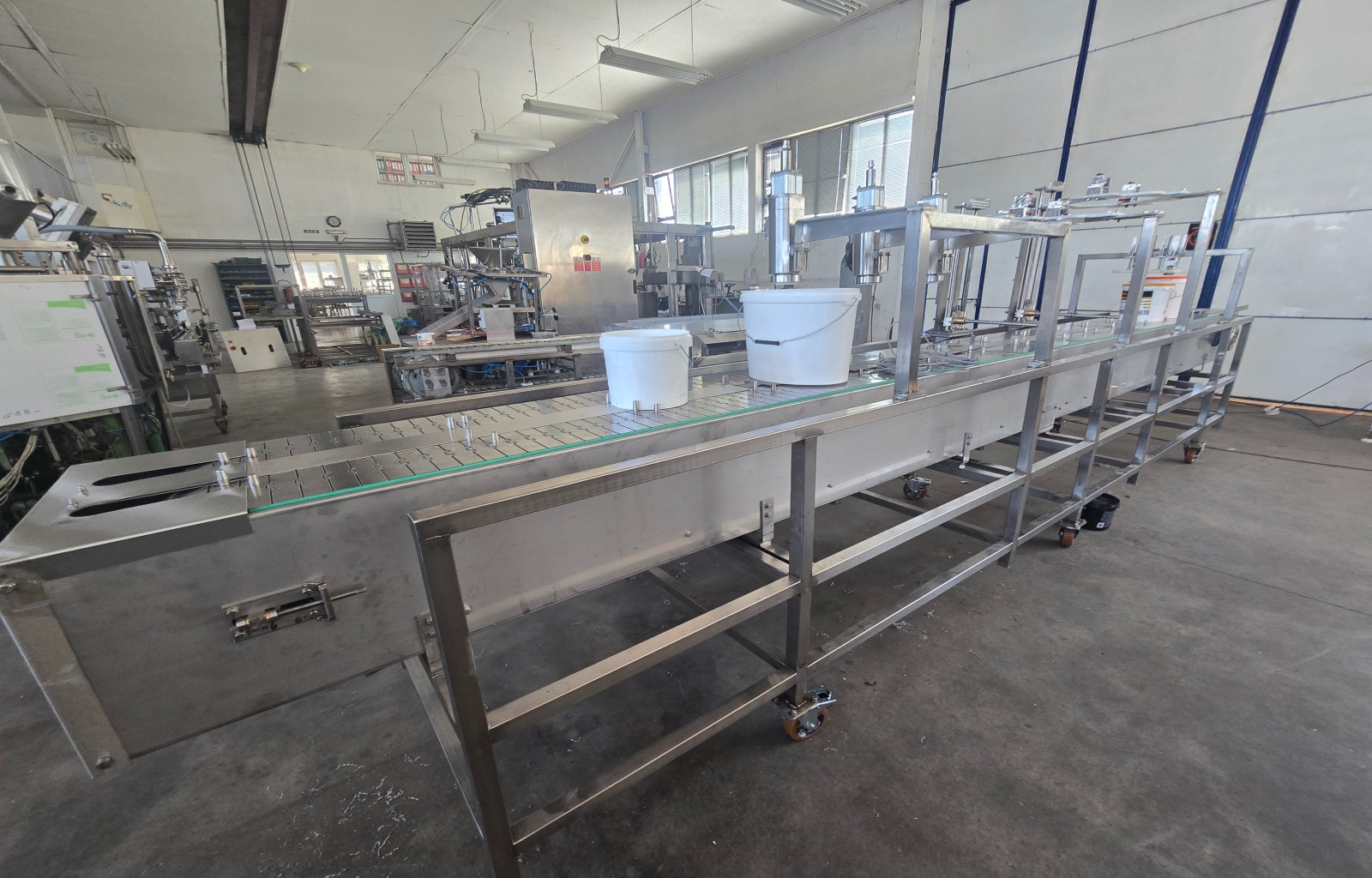

The container conveyor consists of a Prokron hinged belt, a drive and tension unit and elements for precise belt guidance. Elements for adjusting the position of the belt depending on the size of the packaging, as well as conveyor supports and protective coverings are an integral part of the conveyor. There are spikes on the belt that serve to guide and position the containers. The drive unit consists of a motor reducer and a stepper reducer that provides tact (stepping) movement of the belt. This mechanism ensures smooth movement of the conveyor, as well as precise positioning of containers at the dosing stations. The taking of containers is automatic and the dosing is piston-type, designed with two dispensers and two force meters (supply by pump is realized by the user), independent of each other, so they can all measure or they can measure individually. In the next phase of the cycle, the snap-on lid is taken and put on, which is also automatic for several types of packaging, then it is brought to the receiving table.
TECHNICAL CHARACTERISTICS
| – machine capacity | Q = 1000 containers / h – 3 liters |
| – dosage range | 3,00 – 25,00 kg |
| – installed power | Pi = 5,00 Kw |
| – nominal voltage | 3 x 380 V 50 Hz |
| – nominal pressure | p = 6 – 8 bar |
| – air consumption (at 6 bar) | 3000 L / min |
| – machine dimensions L x W x H | 6300 x 1400 x 2400 mm |
| – machine weight | M = 1.550 Kg |
| – diameter of the vessel rim | D = by sample |

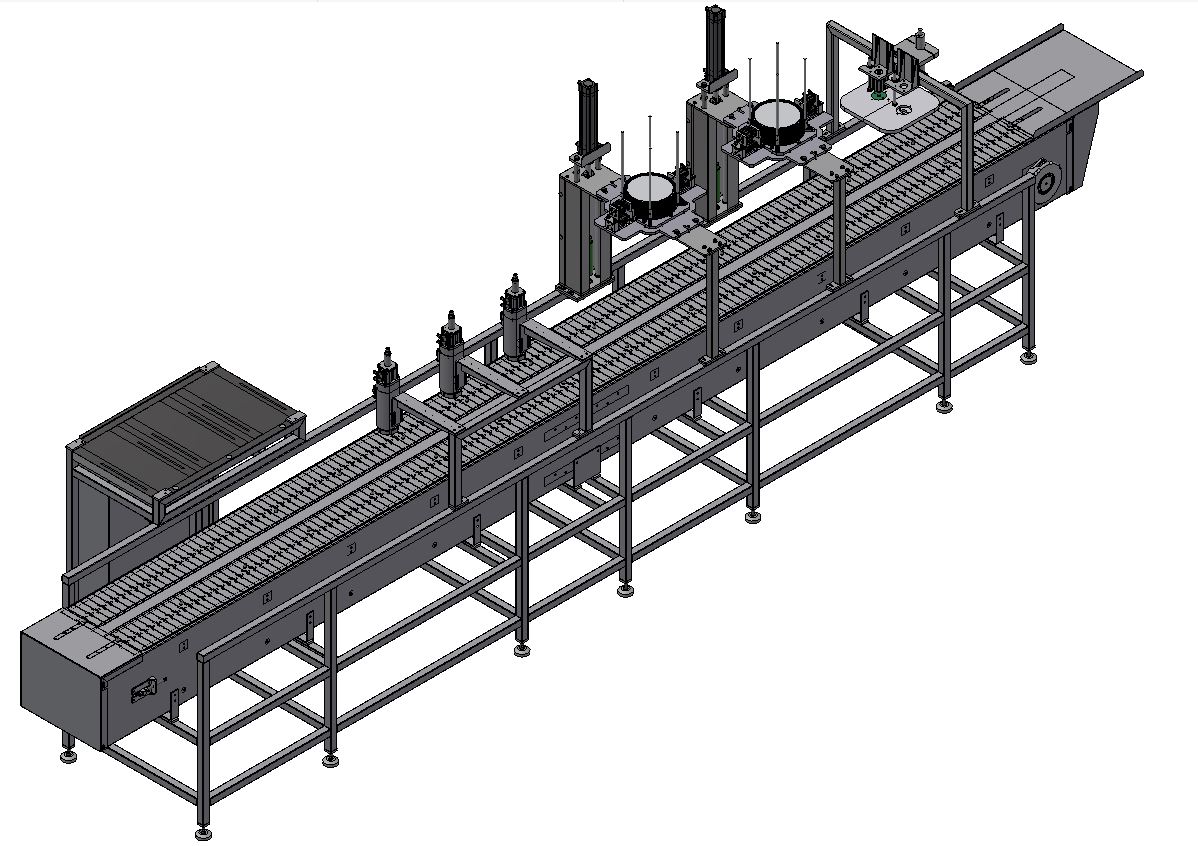

TECHNICAL DOCUMENTATION
