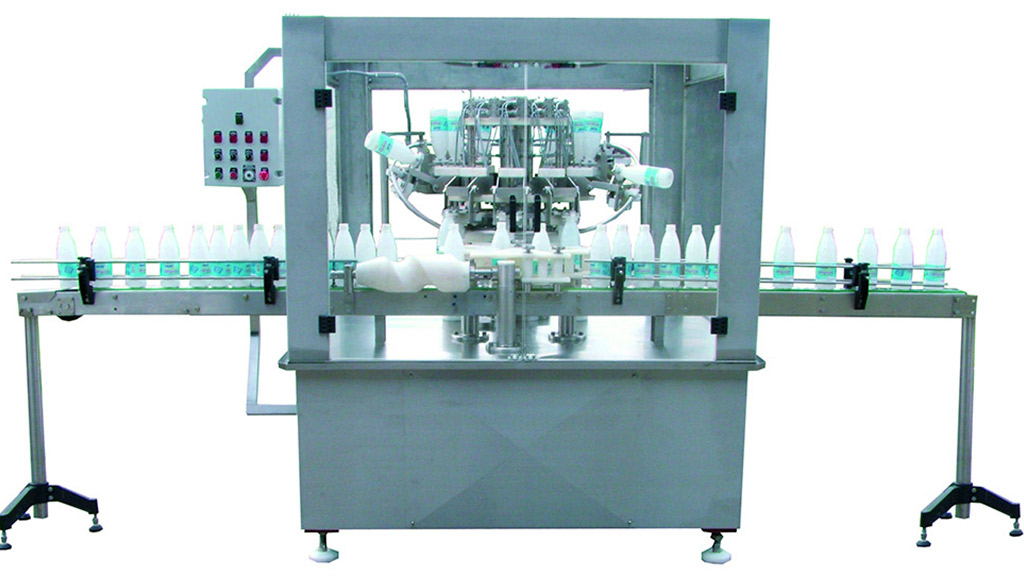

PERPAK 1500 – 9000
PURPOSE OF THE MACHINE
PERPAK 1500 – 9000 is designed for rinsing PET bottles with wide neck and screw cap with a volume of 0,25 to 2,00 liters.
It is produced in capacities of 1500, 3000, 4500, 6000 I9000 and 12000 bottles per hour.
TECHNICAL DESCRIPTION
It consists of three functional units that are driven by a common motor reducer. The complete machine is shielded and on top of it there is a laminar flow cabinet with HEPA filters, which achieves sterility of air within the filling zone.

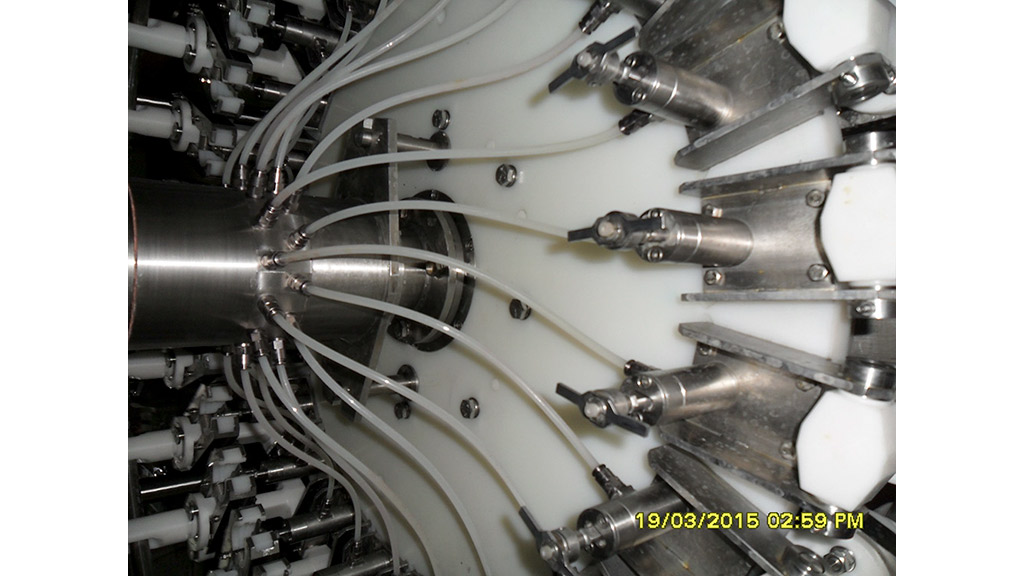

At the entrance there is a dividing screw gear which has the role of taking the bottles from the air transport or manually adding them to the conveyor and introducing them into the entrance star. From there, the bottles are taken with pliers, placed on syringes and rinsed in a circular flow. In the end, the bottles are returned to their original position (upside down) and handed over to the exit star, which transports them further to the filler.
The filler base, all protective covers and other elements that come into contact with the liquid to be packaged are made of stainless steel. The electrical control part is placed in special cabinets with a seal protected from moisture.
TECHNICAL CHARACTERISTICS
| – machine capacity | Q = 3000 bottles / h |
| – installed power | Pi = 2 kW |
| – nominal voltage | 3 x 380 V 50 Hz |
| – nominal pressure | P = 6 – 8 bar |
| – air consumption (at 6 bar) | 100 Nl / min |
| – machine dimensions L x W x H | 2650 x 1650 x 2250 mm |
| – machine weight | M = 1750 Kg |
| – bottle height | 190 mm – 340 mm |
| – bottle diameter | Φ = smaller than 110 mm |
