SEBOPAK 1000 T
S
PURPOSE OF THE MACHINE
SEBOPAK 1000 T is intended for filling, sealing and dating jars of various shapes and sizes, for packing all types of liquid, pasty and creamy materials used in the food industry. Jars in several sizes can be packed on this machine, with the largest volume up to one liter, with the necessary adjustment of certain parameters.
TECHNICAL DESCRIPTION
The SEBOPAK 1000 T machine is horizontal type, linear and automated, with manual loading of jars onto the conveyor. According to the type of driving elements, this is a pneumatic mechanical machine.
The work process is electronically controlled. The machine consists of the following assemblies, which in the technical and technological sense represent a unique unit: conveyor for jars, dosing module, unit for adding and tamping twist off closures, winding twist off closures, dating, receiving turntable. The jar conveyor consists of a Prokron hinged belt, a drive and tension unit and elements for precise belt guidance. Elements for adjusting the position of the belt depending on the size of the packaging, as well as conveyor supports and protective coverings are an integral part of the conveyor. There are spikes on the belt that are used to guide and position the jars.

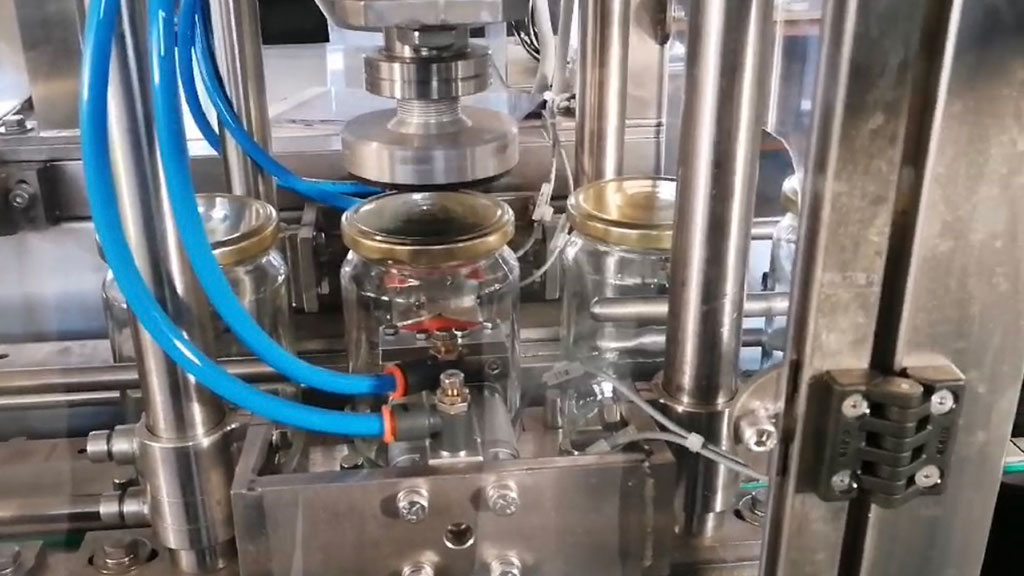

The drive unit consists of a motor reducer and a stepper reducer that provides tact (stepping) movement of the belt. This mechanism ensures smooth movement of the conveyor, as well as precise positioning of the jars on the workstations. The dosing module is designed as a piston doser with pneumatic drive and precise mechanical control of the dosed amount. Liquid is supplied from the container located on the machine. The valve system separates the liquid suction and liquid push strokes. The unit for adding and pressing the closures consists of a magazine in which the closures are placed, a rotary feeder, a channel for guiding the lids, as well as a pneumatic mechanism for pressing the closures on the jar. The twist off shutter unit consists of a base, a motor with a transmission mechanism, a pneumatic cylinder for guiding the shutter head as well as the shutter head itself.
SEBOPAK 1000 T is made of stainless steel and the process is controlled by a programmable logic controller (PLC).
TECHNICAL CHARACTERISTICS
| – machine capacity | Q = 1000 jar / h |
| – dosing range | 0,20 – 1 l |
| – installed power | Pi = 7,00 kW |
| – nominal voltage | U = 3 x 380 V 50 Hz |
| – nominal pressure | P = 6 – 8 bar |
| – air consumption (at 6 bar) | 150 Nl / min |
| – machine dimensions L x W x H | 1650 x 2300 x 2280 mm |
| – machine weight | M = 600 Kg |
