TERMOPAK 6000

TERMOPAK 6000 – is intended for individual and group packaging of products in foil, which has the ability to thermally shrink, and in that way it adheres to the product and makes protection from external influences, and with group packaging it achieves good homogeneity of the package. In this way, a large number of products can be packaged, and it has found the most massive application in group packaging of all types of bottles, boxes, bags, etc., in the food and chemical industry, especially in products for mass consumption.

The TERMOPAK 6000 heat shrinkage line is automatic and consists of several units – devices that make up a functional unit. Filled and closed bottles come with a hinged conveyor to the machine, where they are accepted by the input modular conveyor. Coming to the mixer and the longitudinal guides, the arrangement of the bottles along the width of the modular conveyor begins and until all the columns are filled along the longitudinal guides. Bottles directed and arranged in this way reach the stopper. By alternately operating the front and rear stoppers, a group of bottles is separated in the specified format.

The bottle pack moves forward carried by a modular conveyor and hits the chain conveyor bar. The bar moves more slowly than the modular conveyor, so that it retains the package that remains formed, with the help of side and longitudinal stoppers that do not allow the bottles to move from one column to another. The package guided in this way reaches the end of the modular conveyor, where the stop plate is located. The bottles in the formed arrangement remain on the plate, while the bar goes forward. The next bar of chain conveyor,  which holds and guides the next package, comes to the first package that is on the stop plate and pushes it through the foil film. At the same time, this bar leaves the next packet on the stop plate.

The moment the package passes under the iron and is wrapped with foil, the belt conveyor is started, which is located just behind the iron support and helps to position the package in the position for welding the foil. The iron and the package pusher start at the same time. The pusher crosses the shorter path and presses the package from above. The iron is lowered to the lower position and performs welding and cutting of the foil, with the simultaneous formation of a new foil film (assembles the upper and lower foil).

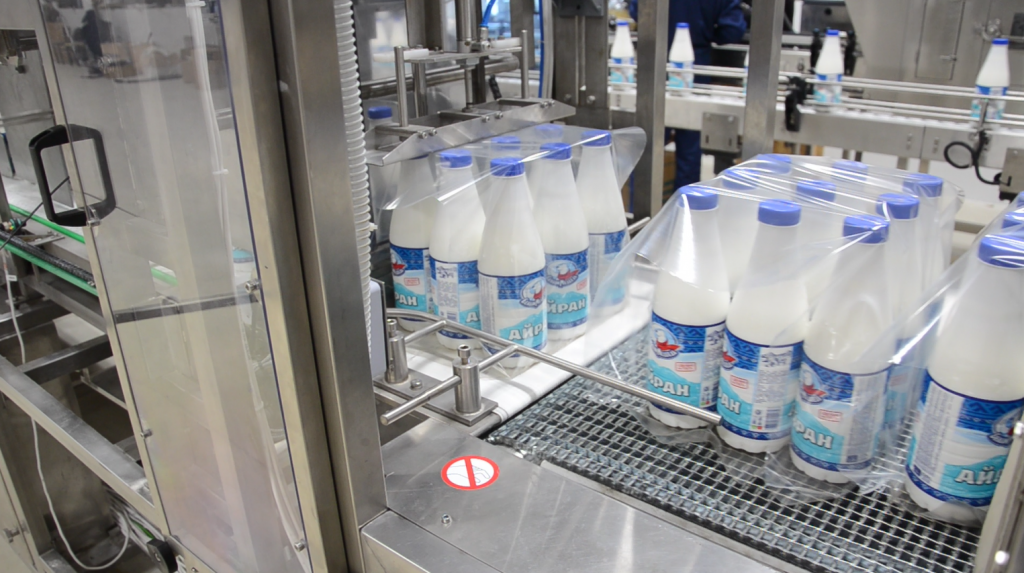

The package thus formed comes to the conveyor, which carries it through the chamber, where the process of thermal shrinkage of the foil around the package takes place. After leaving the chamber, the package comes under a stream of cold air where it acquires firmness and final shape. The package cooling unit is located just behind the chamber and has the task of quickly cooling the foil with which the package is wrapped. Cooling is performed in a stream of cold air generated by a fan and in the extension there is a receiving conveyor, which is designed as a gravity roller.
